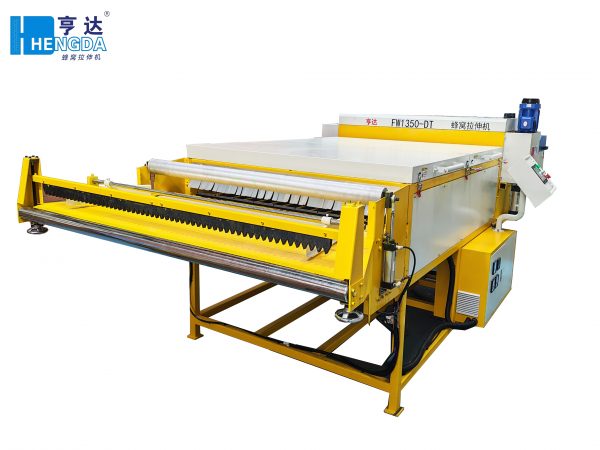

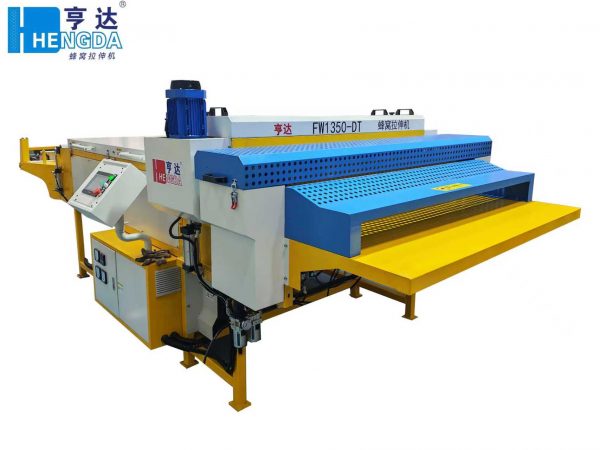

FWD1350-DT Honeycomb Paper Stretching & Cutting Machine
The FWD1350-DT is a high-efficiency honeycomb paper core stretching and shaping machine with integrated cross-cutting and longitudinal slitting functions. Built with a heavy-duty welded frame and dual servo control system, it ensures smooth feeding, precise cutting, and uniform heating for stable production performance.

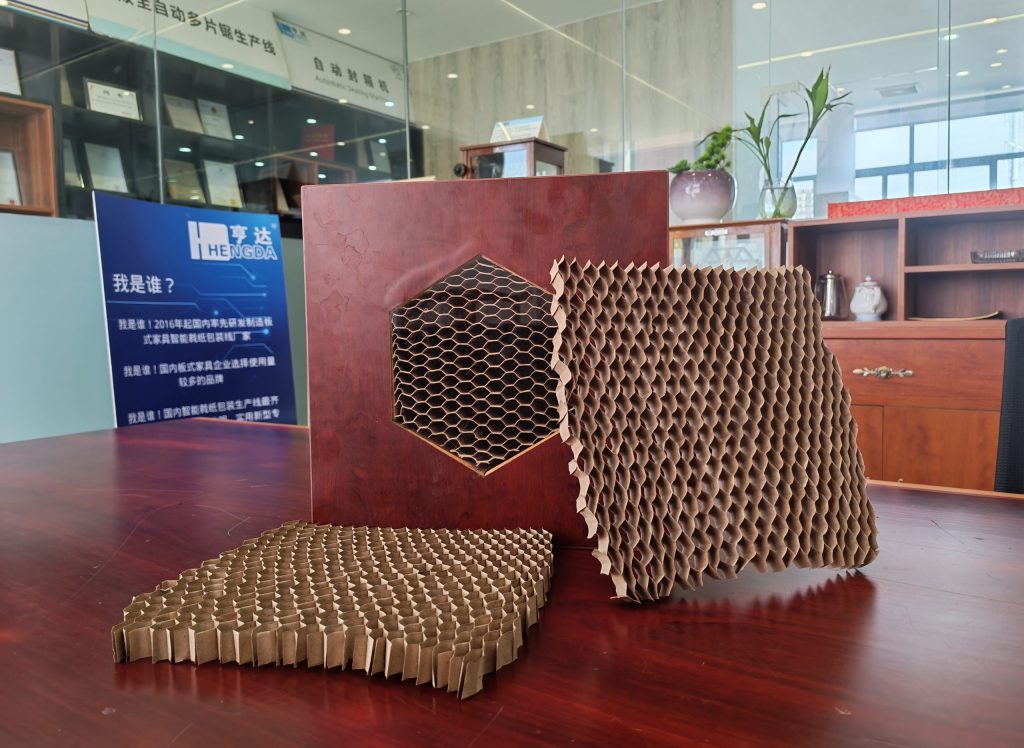

Its versatility makes it suitable for a wide range of production fields, including furniture panels, composite interior doors, eco-friendly packaging materials, architectural decoration panels, and other lightweight structures that rely on honeycomb paper for strength and sustainability.
HENGDA FWD1350-DT Honeycomb Paper Stretching & Cutting Machine

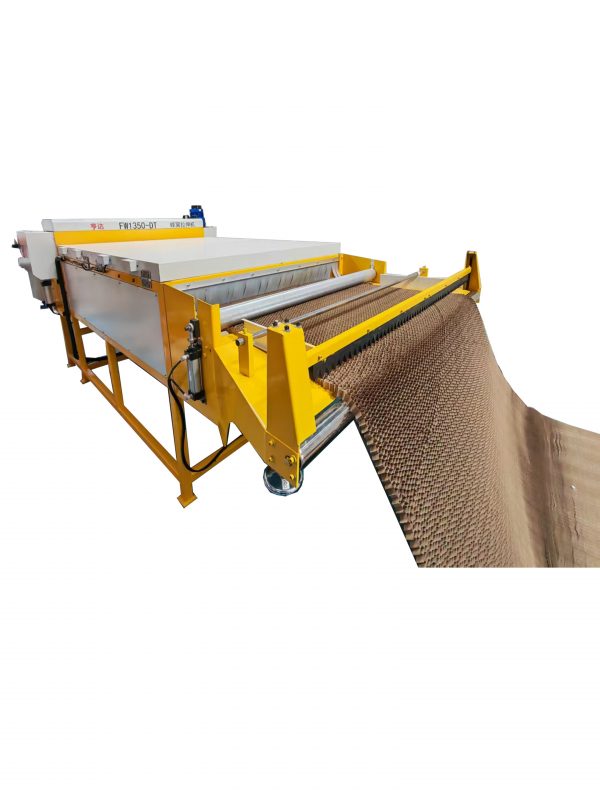

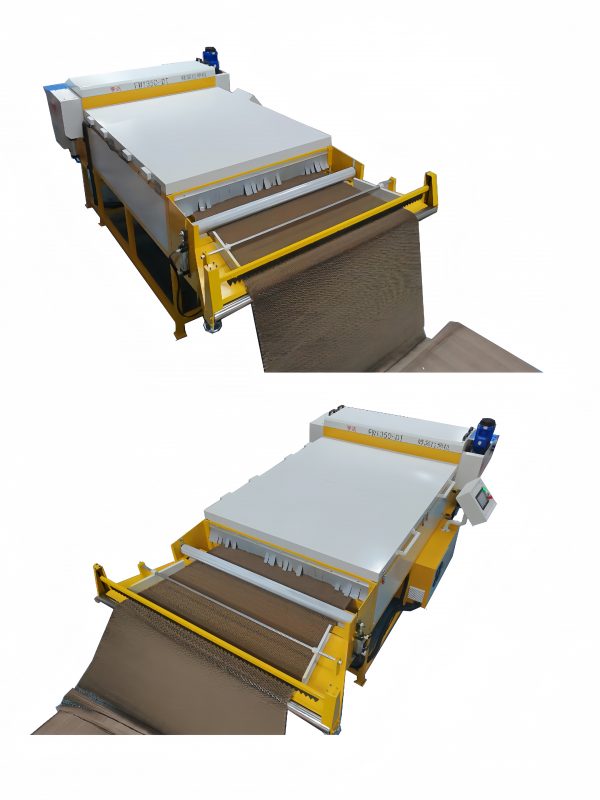

The FWD1350-DT Honeycomb Paper Stretching & Cutting Machine is designed for producing and processing honeycomb paper cores. It performs stretching, drying, and precision cutting in one process, ideal for honeycomb packaging and eco-friendly board manufacturing.
With a robust welded steel structure, the machine provides stable operation even during continuous production. Its dual servo feeding system (roller + chain) and upper pressure rollers ensure smooth, accurate material transport.
The integrated cross and longitudinal cutting system uses circular and guillotine blades to achieve clean, dust-free cuts without the need for an exhaust system. The 9 heating tubes (2 kW each) and insulated heating chamber deliver consistent temperature and efficient energy use.
Features
The FWD1350-DT combines strong mechanical design with precise servo control to ensure efficient and stable production of honeycomb paper cores.
- 3-in-1 Function: Stretching, drying, and cutting integrated in one system.
Robust Structure & Smooth Feeding – Heavy-duty welded steel frame with long feeding table and dual servo-driven rollers ensures stable and accurate material transport.
Precise Cutting System – Equipped with one guillotine and four circular blades for clean, dust-free cross and longitudinal cutting.
Stable Heating Performance – Nine heating tubes (2 kW each, top 4 + bottom 5) and insulated chamber deliver consistent drying temperature.
Clean, Efficient Operation – Smooth cutting edges, no dust collection needed, and servo-controlled scraping mechanism to prevent jamming.
Technical Parameters
| No. | Content | Parameters |
| 1 | Model | FWD1350-DT |
| 2 | Max. Stretching Width | 1350 mm |
| 3 | Stretching Length | Unlimited |
| 4 | Paper Thickness | 5–100 mm |
| 5 | Conveying Speed | 0–8 m/min |
| 6 | Drying Speed | 0–8 m/min |
| 7 | Servo Feeding Motor Power | 0.75 kW |
| 8 | Chain Servo Motor Power | 0.75 kW |
| 9 | Slitting Motor Power | 1.5 kW |
| 9 | Number of Heating Tube | 5 below, 4 above; total 9 pcs |
| 10 | Heating Tubes | 9 pcs × 2 kW (Total 18 kW) |
| 11 | Heating Temperature | 100 °C |
| 12 | Knife Configuration | 1 cross knife + 4 longitudinal knives (CNC length control) |
| 13 | Total Power | 21 kW |
| 14 | Air Pressure | 0.6–0.8 MPa |
| 15 | Machine Size | 3450 × 2200 × 1500 mm (L*W*H) |
| 16 | Machine Weight | 1500 KG |
