Diversion Hole Punching Drilling Machine
This punching machine is designed to drill diversion holes for PVC and PET foam cores, as well as balsa wood (sabah wood) cores. Using a front-in and front-out reciprocating processing mode, and it uses drill pins for pressing or cutting to efficiently complete all diversion hole positions in one time.
Fully automatic drilling of infusion holes in PVC, PET sheets
Fully automatic drilling of infusion holes on top of balsa wood panels
Technical Data
Bolded blue text is the technical data of FNZ2500-4 different from FNZ2500-2, the rest are the same.
| No. | Content | Parameters |

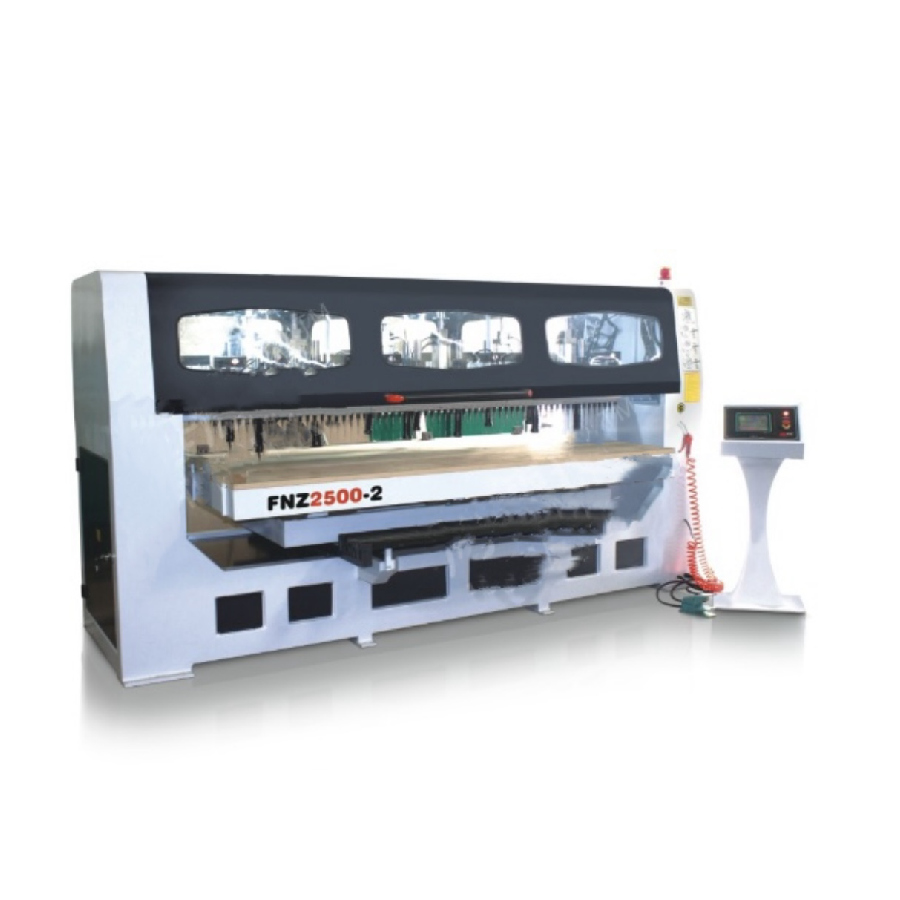

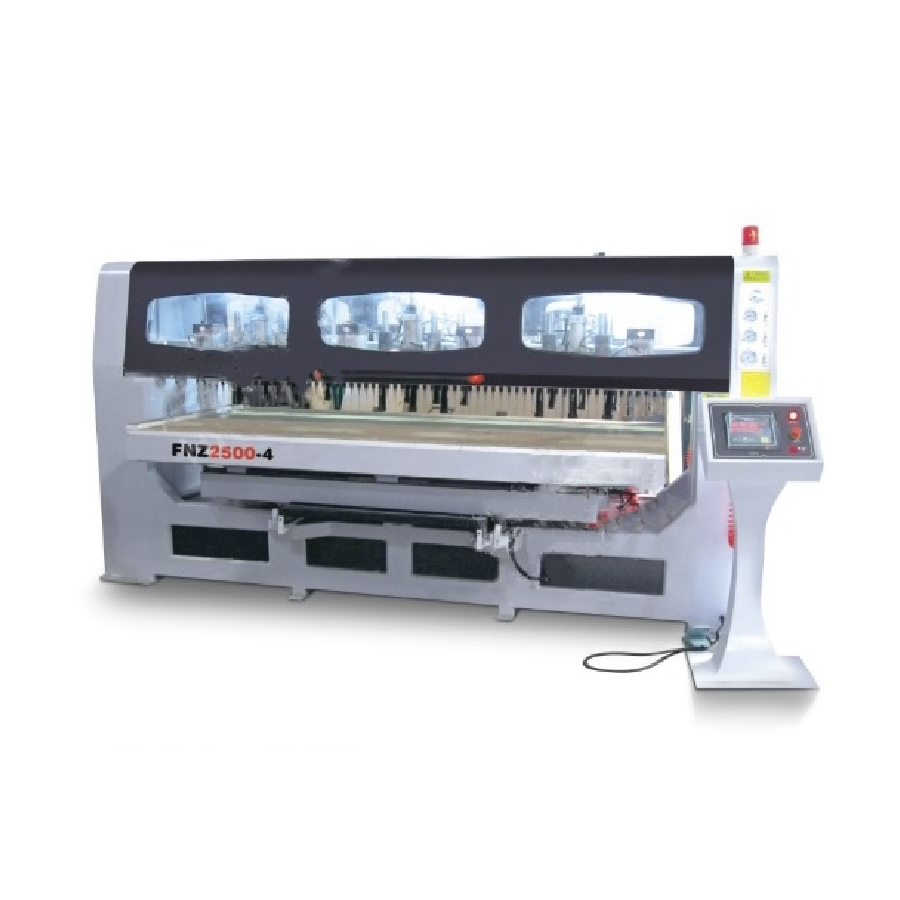

| 1 | Model | FNZ2500-2 / FNZ2500-4 |
| 2 | Name | Diversion hole punch (2 rows) / (4 rows) |
| 3 | Multi-drill motor power (KW) | 1.5KW*6=9KW / 1.5KW*12=18KW |
| 4 | Indraft motor power (KW) | 4 |
| 5 | Maximum multi-drill size (mm) | 2440*1220 |
| 6 | Aperture size (mm) | 20*20; 25*25; 25.4*25.4; 30*30; 40*40; 50*50; 50.8*50.8 / 20*20 |
| 7 | Maximum drilling depth (mm) | 50 |
| 8 | Maximum drilling diameter (mm) | Ф12mm |
| 9 | Minimum drilling diameter (mm) | Ф2mm |
| 10 | Number of drill row | 3 / 6 double rows |
| 11 | Number of drilling position | 21*3=63 / 42*6=252 |
| 12 | Working barometric pressure | 0.6-0.8MPa |
| 13 | Machine dimension approx. (mm) | 3500*2500*1800 / 3600*2800*1850 |
| 14 | Machine weight approx. (KG) | 5200 / 5500 |
| 15 | Drill a standard board, 2440*1220*30mm, pitch 20*20mm board, need to use 180s to finish | |
